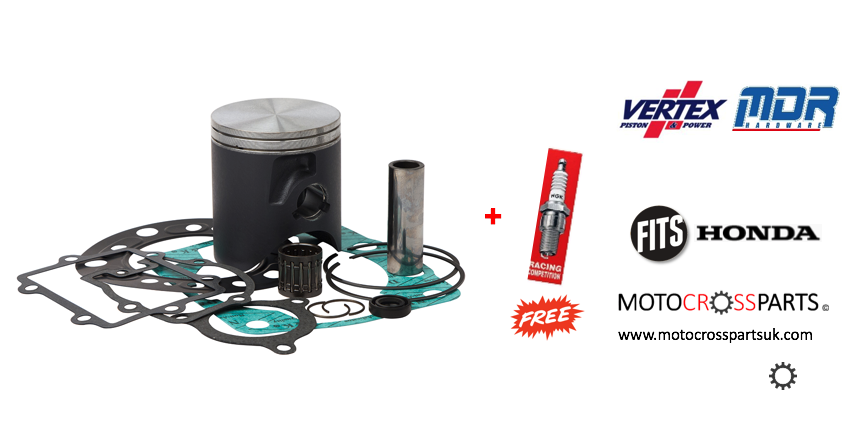

Everything you need for a TOP END REBUILD
Top end piston kit includes:
- Piston Kit (incl rings, pins, circlips)
- Top end gaskets
- Small end (wrist pin) bearing
- + FREE NGK RACING SPARK PLUG
Vertex Piston Kits
Vertex pistons are manufactured using exotic aluminium alloys called Low-Ex (low expansion) Silicon charged with 12%, 18% or 21% depending on the application. Vertex pistons are manufactured using either a gravity cast or hydraulic forging process to make the blank parts and then the material structure is refined using a hi-tech Heat Treatment completed in an automatic HT implant with solubilization by quench in hot water. This heat treating process is cutting edge technology for this type of aluminium alloys.
The machining process is completed using the latest CNC machines and software as well as the usage of diamond tools. By using this high tech tooling, specific surface finishes can be achieved depending on the final application of the finished piston. Every Vertex piston passes through a rigorous manual and automatic quality control process to insure only the highest quality level.
Vertex pistons are coated with a special Molybdenum Bisulphite black coating to aid during piston break in and reducing friction during the work inside the cylinder. Recently, following the latest developments used in Formula One engines, Vertex has introduced a new, all over, Phosphate Coating which has a slight hardness increase combined with a light surface porosity that exhibits superior adhesion qualities of the Molybdenum Coating, extending the coating durability for twice as long.
MDR Top End Gaskets
MDR offers the most complete line of gaskets for MX.
- Gaskets are made from high tech materials, standard ISO 9001.
- Case hardened surface for maximum water resistance.
- Low carbon core to prevent breakage.
- Has the ultimate combination between strength and hardness.
- These are reliable race proven top end gasket sets that offer better than OEM performance at a reasonable price.
Vertex Small End Bearing
All bearings are made using high precision equipment from 52100 steel which has been heat treated which obtains a harder surface with increased resistance to wear and corrosion.
NGK Spark Plug
NGK has sparked countless victories. Whether its Moto GP, Moto-X or Trials NGK has the ideal plug. For winners the world over.
