ATHENA Standard Bore Cylinder Kit Ø 44,5 mm, 65 cc - P400250100006 (Includes Piston and Cylinder Head)
Athena has been constantly investing in cylinder aftermarket replacement parts for more than ten years, to improve their production and performance.
All the cylinders are entirely engineered in Italy by Athena’s R&D Department which has a strong internal know-how and cutting-edge tools to design and test each piece. They are coated with motor-nicksil, a nickel-silicon coating developed by Athena to obtain smoothness and optimal wear resistance.
Athena’s cylinder kits and its components are recognized worldwide for their performance, durability and reliability.
The Standard Bore cylinder kit developed by Athena guarantees the same performance as the original spare parts, extreme reliability and optimal smoothness as a result of the lightweight aluminum cylinder, the barrel with nickel-silicon coating, and a piston designed to reduce further friction.

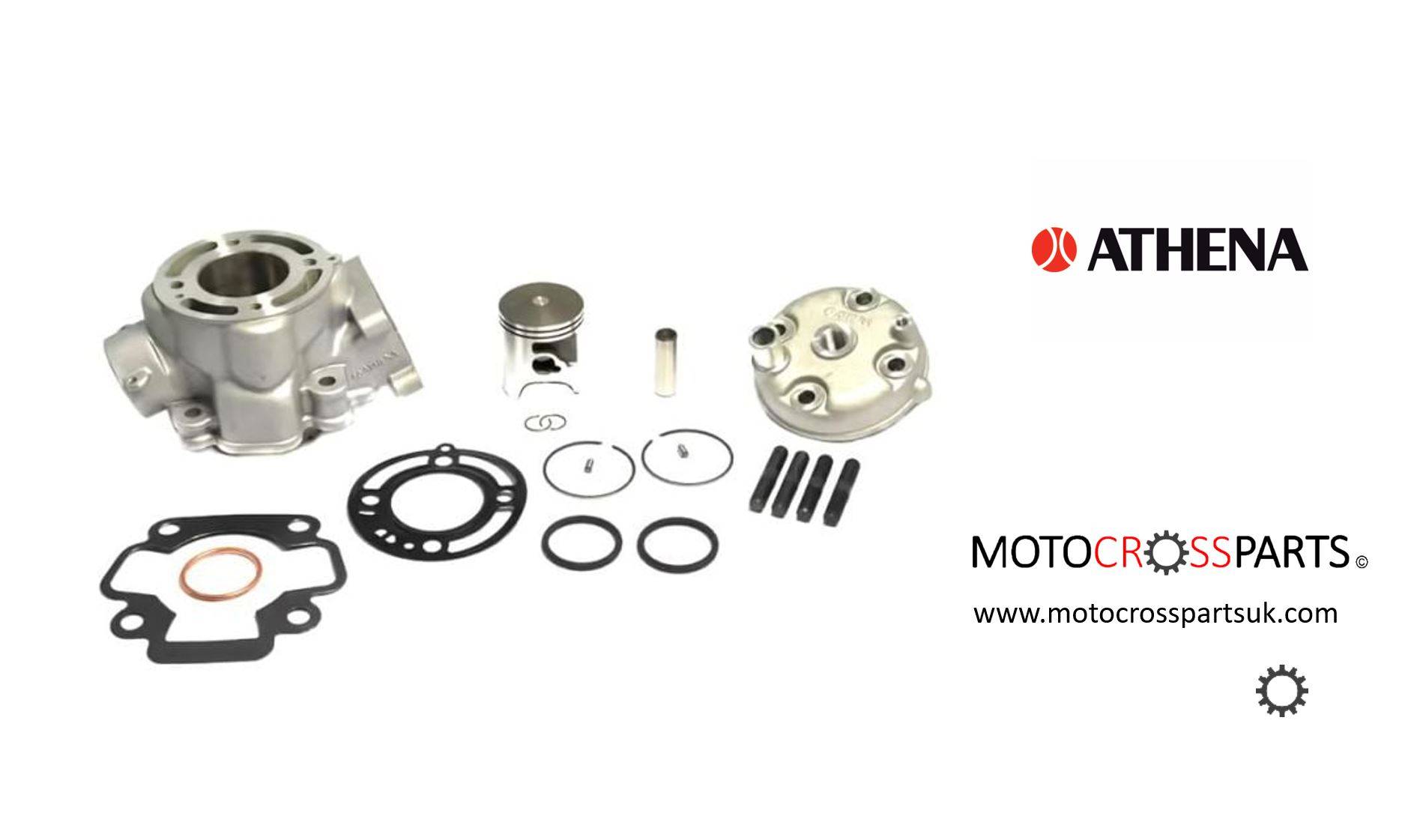

The kit includes the high-quality aluminum cylinder with standard bore, the cylinder head, the complete piston with the piston pin and rings, and all the necessary gaskets.
All the components of the kit have been developed to withstand the highest temperatures, pressures and stresses and have been validated by Athena technicians with severe bench and road tests.
This cylinder kit can be installed without making any changes to the engine crankcase.
CAUTION! All Athena products must be used in compliance with the specific national regulations of the member state where it is being marketed or sold. Athena declines all responsibility for any improper use.
Technical features
- Bore Diameter (mm) 44.50
- Compression Ratio 14.2:1
- Displacement (cc) 65
- Net Weight (Kg) 1.45
Partner Cross Reference code and Optional Parts
- S410250308001 Cylinder Head
- S4C04450001A Piston Kit 44,45
- S4C04450001B Piston Kit 44,46
- P400250160006 Gaskets Kit
- S41316043 Rings
Vehicle compatibility
- KAWASAKI KX 65 cc 2002/2025
