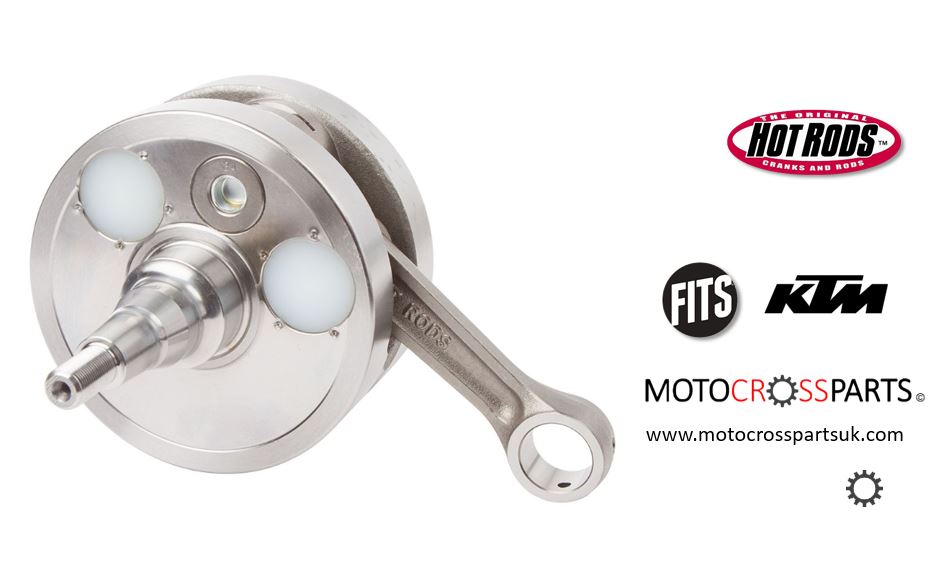

Husqvarna TC / TE 250 2014 - 2022 Hot Rods Connecting Rod
- All connecting rod kits include crank pins, crank pin bearings, washers & wrist Pins (when applicable)
- Manufactured from hot-rolled ASTM 4115 and case-hardened to 58 - 62 Rc
- Shot peened to eliminate surface stress risers
- Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing
Big End Bearing (mm): 24x31x16.6
Big End Bore (mm): 31.00
Big End Width (mm): 16.90
Center To Center (mm): 124.90
Pin Diameter (mm): 24.00
Pin Length (mm): 59.80
Small End Bearing (mm): 18x22x20
Small End Bore (mm): 22.00
Small End Width (mm): 16.90
Washer Thickness (mm): 1
