Connecting Rod

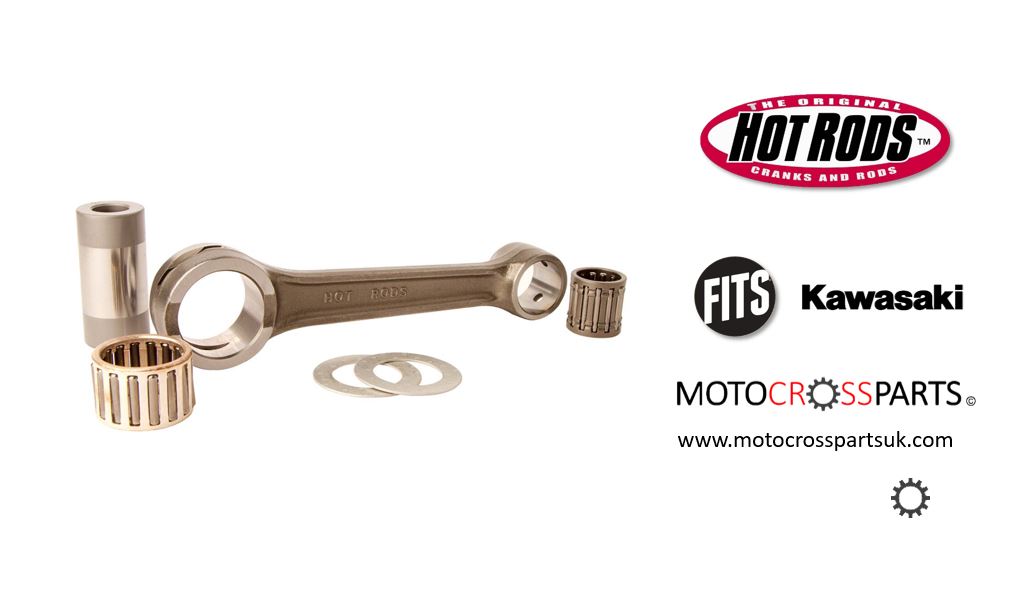

Kawasaki KX 500 1985-2004 Hot Rods Connecting Rod

Stops the knock that a worn big-end bearing leaves behind.

Kawasaki KX 500 1985-2004 Hot Rods Connecting Rod
Actual Verified Photo Verified: actual photo of product
Brand
HOT RODS
Part No:
HR.8148
Condition:
New
Delivery:
2-3 working days
Delivery info
UK based Free deliveryOn orders over £50
WAS £129.95
£111.00(£92.50 ex VAT)
You save £18.95

Key benefits of fitting this part

Restores correct bottom-end geometry A fresh rod restores correct geometry and tolerances at the heart of the bottom end.
Protects the whole engine Prevents a failed rod from taking out the crankcase entirely.
Essential once knocking starts Essential once knocking or excess play is found at the big end.
Brand
HOT RODS
Part No:
HR.8148
Condition:
New
Delivery:
2-3 working days
Delivery info
UK based Free deliveryOn orders over £50

Product description

  • All connecting rod kits include crank pins, crank pin bearings, washers & wrist Pins (when applicable)
  • Manufactured from hot-rolled ASTM 4115 and case-hardened to 58 - 62 Rc
  • Shot peened to eliminate surface stress risers
  • Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing

Photo is for illistration purposes onlyTechnical Specifications:

Technical Specifications:

Big End Bearing (mm):

26x33x22

Big End Bore (mm):

33.00

Big End Width (mm):

21.97

Center To Center (mm):

145.00

Pin Diameter (mm):

26.00

Pin Length (mm):

54.40

Small End Bearing (mm):

19x24x25

Small End Bore (mm):

24.00

Small End Width (mm):

21.97

Washer Thickness (mm):

1
