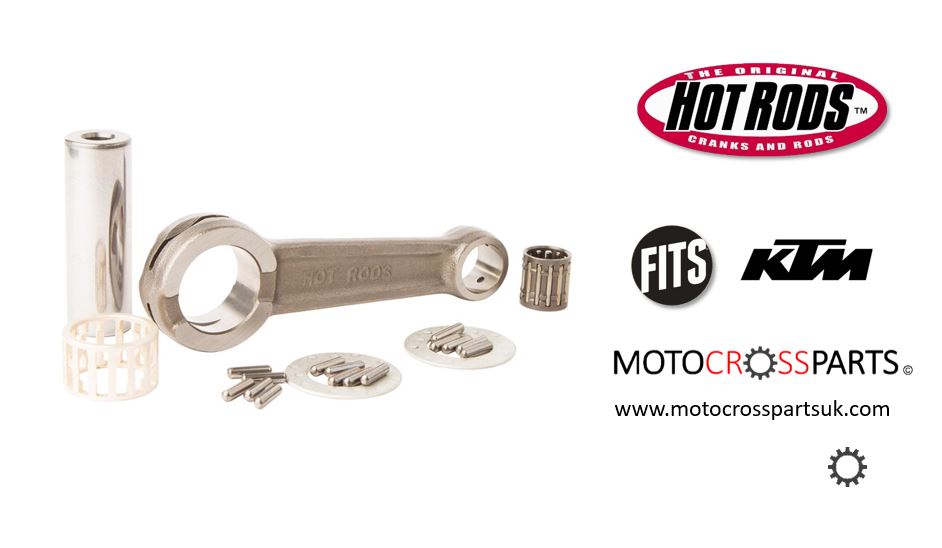

KTM 65 SX 2009 - on Hot Rods Connecting Rod Kit
- All connecting rod kits include crank pins, crank pin bearings, washers & wrist Pins (when applicable)
- Manufactured from hot-rolled ASTM 4115 and case-hardened to 58 - 62 Rc
- Shot peened to eliminate surface stress risers
- Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing
Photo is for illistration purposes only
Technical Specifications:

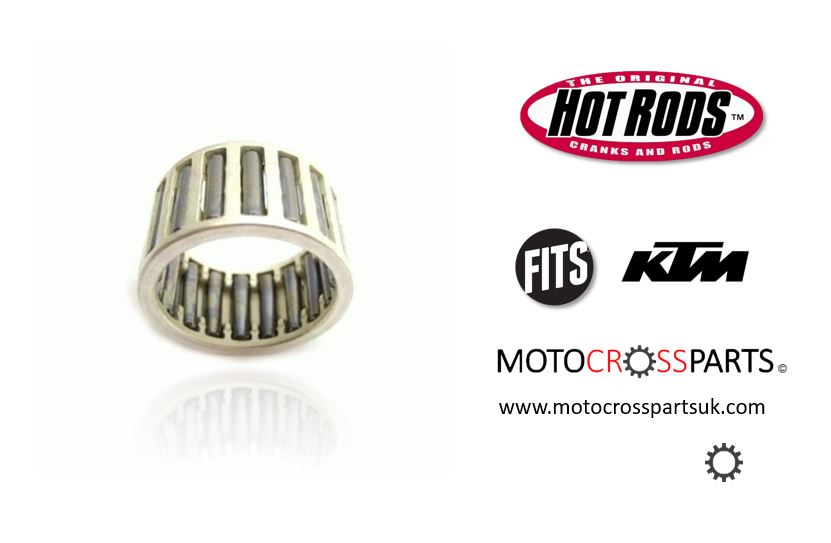

Big End Bearing (mm): 18x24x14.8
Big End Bore (mm): 24.00
Big End Width (mm): 14.90
Center To Center (mm): 88.00
Pin Diameter (mm): 18.00
Pin Length (mm): 54.40
Small End Bearing (mm): 12x15x16.3
Small End Bore (mm): 15.00
Small End Width (mm): 13.00
Washer Thickness (mm): 1
