KTM SXF 250 2006 - 2012 Hot Rods Connecting Rod
- All connecting rod kits include crank pins, crank pin bearings, washers & wrist Pins (when applicable)
- Manufactured from hot-rolled ASTM 4115 and case-hardened to 58 - 62 Rc
- Shot peened to eliminate surface stress risers
- Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing
250 EXC-F (06-07); 250 SX-F (05-12); 250 SXS-F (06-08); 250 XC-F (07-09,11); 250 XCF-W (08-13)

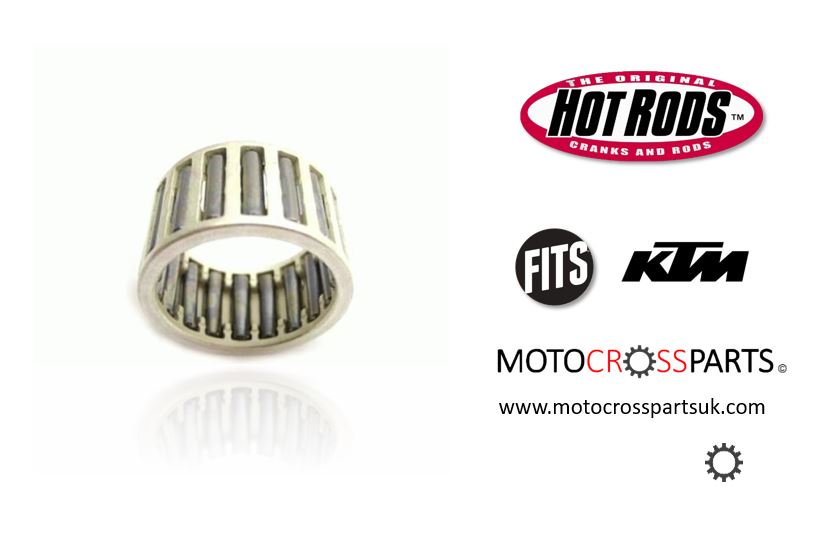

Big End Bearing (mm): 30x38x17.7
Big End Bore (mm): 38.00
Big End Width (mm): 17.90
Center To Center (mm): 98.00
Pin Diameter (mm): 30.00
Pin Length (mm): 53.70
Small End Bore (mm): 16.00
Small End Width (mm): 17.90
